Line Pipe Size and Weight Chart

Line Pipe Size and Weight

Line Pipe Size and Weight Chart is a table of information that provides precise structural details of certain pipe. It gives customers an overview of how efficient the pipe can be.

In the gas and oil industry, line pipe are widely utilized to transport fluids such as petroleum, natural gas, and crude products. The pipe usually carries a certain product. To ensure that the material is suitable for a certain project, it is manufactured under the standards of the American Petroleum Institute. The main focus of the institution is to create a series of quality standards in accordance with environmental and legislative guidelines.

Line Pipe Size and Weight Discussion

For line pipe, the institute has mandated the industry to follow API Specification 5L. Its production involves the process of using micro-alloy heating treatment. This specification states that the pipe will be used to transport products from the gas and oil industry. Moreover, it helps enterprises to develop the material’s cost-effectiveness and efficiency.

Such field manufactures two kinds of line pipe: welded line pipe and seamless line pipe. Pipe have different sizes and weights. This is determined by its NPS, O.D, and Pipe Schedule.

NPS is the globally followed standard size for different pipe used for temperatures and pressure ranging from high to low. The term “nominal” refers to the diameter of the material.

Pipe Schedule is used to determine the wall thickness of different pipe sizes. The SCH uses the standards of the American Society of Mechanical Engineering. There are 11 new schedules developed: 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, & 160. SCH 40 is the most popular.

Line Pipe Size and Weight Benefits

Line pipe are widely used for liquid transportation because of the various benefits they offer. For instance, opting for line pipe will significantly curtail the transportation cost. This reason alone captivates the interest of customers. Another reason is that maintenance is not necessary once it is installed as the material is made to be highly resistant to chemicals elements and corrosion. Investing in line pipe can also be a great decision as this material is designed to last for more 20 years.

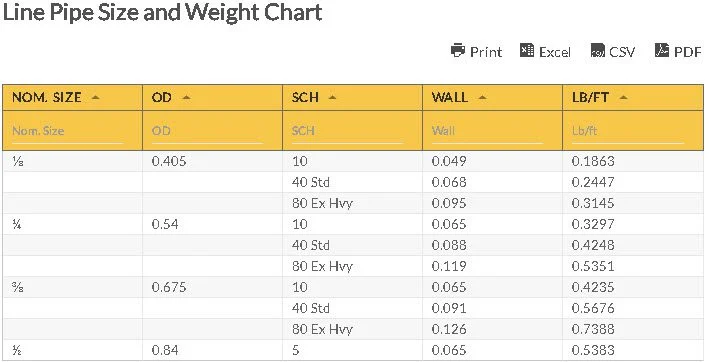

Line Pipe Size and Weight Chart

wdt_ID	Nom. Size	OD	SCH	Wall	Lb/ft
1	⅛	0.405	10	0.049	0.1863
2			40 Std	0.068	0.2447
3			80 Ex Hvy	0.095	0.3145
4	¼	0.54	10	0.065	0.3297
5			40 Std	0.088	0.4248
6			80 Ex Hvy	0.119	0.5351
7	⅜	0.675	10	0.065	0.4235
8			40 Std	0.091	0.5676
9			80 Ex Hvy	0.126	0.7388
10	½	0.84	5	0.065	0.5383
11			10	0.083	0.671
12			40 Std	0.109	0.851
13			80 Ex Hvy	0.147	1.088
14				0.188	1.309
15			XX Hvy	0.294	1.714
16	¾	1.05	5	0.065	0.6838
17			10	0.083	0.8572
18			40 Std	0.113	1.131
19			80 Ex Hvy	0.154	1.474
20				0.219	1.944
21			XX Hvy	0.308	2.441
22	1	1.315	5	0.065	0.8678
23			10	0.109	1.404
24			40 Std	0.133	1.679
25			80 Ex Hvy	0.179	2.172
26				0.25	2.844
27			XX Hvy	0.358	3.659
28	1 ¼	1.660	5	0.065	1.107
29			10	0.109	1.806
30			40 Std	0.14	2.273
31			80 Ex Hvy	0.191	2.997
32				0.25	3.765
33			XX Hvy	0.382	5.214
34	1 ½	1.900	5	0.065	1.274
35			10	0.109	2.085
36			40 Std	0.145	2.718
37			80 Ex Hvy	0.2	3.631
38				0.281	4.859
39			XX Hvy	0.4	6.408
40	2	2.375	5	0.065	1.604
41			10	0.109	2.638
42			40 Std	0.154	3.653
43			80 Ex Hvy	0.218	5.022
44				0.344	7.462
45			XX Hvy	0.436	9.029
46	2 ½	2.875	5	0.083	2.475
47			10	0.12	3.531
48			40 Std	0.203	5.793
49			80 Ex Hvy	0.276	7.661
50				0.375	10.01
51			XX Hvy	0.552	13.69
52	3	3.500	5	0.083	3.029
53			10	0.12	4.332
54			40 Std	0.216	7.576
55			80 Ex Hvy	0.3	10.25
56				0.438	14.32
57			XX Hvy	0.6	18.58
58	3 ½	4.000	5	0.083	3.472
59			10	0.12	4.973
60			40 Std	0.225	9.109
61			80 Ex Hvy	0.318	12.5
62			XX Hvy	0.636	22.85
63	4	4.500	5	0.083	3.915
64			10	0.12	5.613
65			40 Std	0.237	10.79
66			80 Ex Hvy	0.337	14.98
67				0.438	19
68				0.531	22.51
69			XX Hvy	0.674	27.54
70	4 ½	5.00	40 Std	0.247	12.53
71			80 Ex Hvy	0.355	17.61
72			XX Hvy	0.71	32.43
73	5	5.563	5	0.109	6.349
74			10	0.134	7.77
75			40 Std	0.258	14.62
76			80 Ex Hvy	0.375	20.78
77				0.5	27.04
78				0.625	32.96
79			XX Hvy	0.75	38.55
80	6	6.625	5	0.109	7.585
81			10	0.134	9.289
82			40 Std	0.28	18.97
83			80 Ex Hvy	0.432	28.57
84				0.562	36.39
85				0.719	45.35
86			XX Hvy	0.864	53.16
87	7	7.625	Std	0.301	23.57
88			Ex Hvy	0.5	38.05
89			XX Hvy	0.875	63.08
90	8	8.625	5	0.109	9.914
91			10	0.148	13.4
92				0.25	22.36
93				0.277	24.7
94			40 Std	0.322	28.55
95				0.406	35.64
96			80 Ex Hvy	0.5	43.39
97				0.594	50.95
98				0.719	60.71
99				0.812	67.76
100			XX Hvy	0.875	72.42

Click Button for Full Size Chart

Full Size Chart

wdt_ID	Nom. Size	OD	SCH	Wall	Lb/ft
1	⅛	0.405	10	0.049	0.1863
2			40 Std	0.068	0.2447
3			80 Ex Hvy	0.095	0.3145
4	¼	0.54	10	0.065	0.3297
5			40 Std	0.088	0.4248
6			80 Ex Hvy	0.119	0.5351
7	⅜	0.675	10	0.065	0.4235
8			40 Std	0.091	0.5676
9			80 Ex Hvy	0.126	0.7388
10	½	0.84	5	0.065	0.5383
11			10	0.083	0.671
12			40 Std	0.109	0.851
13			80 Ex Hvy	0.147	1.088
14				0.188	1.309
15			XX Hvy	0.294	1.714
16	¾	1.05	5	0.065	0.6838
17			10	0.083	0.8572
18			40 Std	0.113	1.131
19			80 Ex Hvy	0.154	1.474
20				0.219	1.944
21			XX Hvy	0.308	2.441
22	1	1.315	5	0.065	0.8678
23			10	0.109	1.404
24			40 Std	0.133	1.679
25			80 Ex Hvy	0.179	2.172
26				0.25	2.844
27			XX Hvy	0.358	3.659
28	1 ¼	1.660	5	0.065	1.107
29			10	0.109	1.806
30			40 Std	0.14	2.273
31			80 Ex Hvy	0.191	2.997
32				0.25	3.765
33			XX Hvy	0.382	5.214
34	1 ½	1.900	5	0.065	1.274
35			10	0.109	2.085
36			40 Std	0.145	2.718
37			80 Ex Hvy	0.2	3.631
38				0.281	4.859
39			XX Hvy	0.4	6.408
40	2	2.375	5	0.065	1.604
41			10	0.109	2.638
42			40 Std	0.154	3.653
43			80 Ex Hvy	0.218	5.022
44				0.344	7.462
45			XX Hvy	0.436	9.029
46	2 ½	2.875	5	0.083	2.475
47			10	0.12	3.531
48			40 Std	0.203	5.793
49			80 Ex Hvy	0.276	7.661
50				0.375	10.01
51			XX Hvy	0.552	13.69
52	3	3.500	5	0.083	3.029
53			10	0.12	4.332
54			40 Std	0.216	7.576
55			80 Ex Hvy	0.3	10.25
56				0.438	14.32
57			XX Hvy	0.6	18.58
58	3 ½	4.000	5	0.083	3.472
59			10	0.12	4.973
60			40 Std	0.225	9.109
61			80 Ex Hvy	0.318	12.5
62			XX Hvy	0.636	22.85
63	4	4.500	5	0.083	3.915
64			10	0.12	5.613
65			40 Std	0.237	10.79
66			80 Ex Hvy	0.337	14.98
67				0.438	19
68				0.531	22.51
69			XX Hvy	0.674	27.54
70	4 ½	5.00	40 Std	0.247	12.53
71			80 Ex Hvy	0.355	17.61
72			XX Hvy	0.71	32.43
73	5	5.563	5	0.109	6.349
74			10	0.134	7.77
75			40 Std	0.258	14.62
76			80 Ex Hvy	0.375	20.78
77				0.5	27.04
78				0.625	32.96
79			XX Hvy	0.75	38.55
80	6	6.625	5	0.109	7.585
81			10	0.134	9.289
82			40 Std	0.28	18.97
83			80 Ex Hvy	0.432	28.57
84				0.562	36.39
85				0.719	45.35
86			XX Hvy	0.864	53.16
87	7	7.625	Std	0.301	23.57
88			Ex Hvy	0.5	38.05
89			XX Hvy	0.875	63.08
90	8	8.625	5	0.109	9.914
91			10	0.148	13.4
92				0.25	22.36
93				0.277	24.7
94			40 Std	0.322	28.55
95				0.406	35.64
96			80 Ex Hvy	0.5	43.39
97				0.594	50.95
98				0.719	60.71
99				0.812	67.76
100			XX Hvy	0.875	72.42

Line Pipe Size and Weight Chart Abbreviations:

O.D. – Outer Diameter
Lbs/ft – pounds per feet
Std – Standard
SCH – Schedule
Ex Hvy – Extra Heavy
XX Hvy – Double Extra Heavy

Metrification Formula

O.D X 25.4 = mm
I.D x 25.4 = mm Wall x 25.4 = mm
Lbs/ft x 1.488 = kg/meter

Selecting the Right Line Pipe Size and Weight for Your Pipeline Projects

When planning and implementing pipeline infrastructure for oil and gas transportation, understanding the detailed specifications in the Line Pipe Size and Weight Chart is essential for ensuring optimal system performance, regulatory compliance, and cost-effective project execution. The comprehensive dimensional data enables engineers and procurement specialists to select the perfect pipe specifications based on specific flow requirements, pressure ratings, and installation parameters. At FlowTech Energy, we maintain an extensive inventory of API 5L compliant line pipe across all standard sizes and weights, providing operators with reliable options for both new installations and replacement projects.

Our experienced technical team can help you navigate the complexities of line pipe selection, ensuring you choose the right combination of nominal pipe size, outside diameter, and weight for your specific pipeline application. We understand that proper size and weight specification is critical not only for immediate installation success but also for long-term operational performance and maintenance considerations. Contact us today at 1-877-645-6693 to discuss how our inventory of quality line pipe can provide the perfect balance of flow capacity, pressure resistance, and structural durability for your next pipeline project. Whether you’re working with standard applications or specialized high-pressure environments, our comprehensive selection of API 5L line pipe ensures you’ll find the exact specifications needed to optimize both performance and value throughout your pipeline system’s operational lifecycle.
