Grade | Amine Plant |
---|---|
Condition | Used |
Gas Volume Capacity (MMSCFD) | 0-50 |
Certifications | Yes |
Manufacturer | Propak Systems |
Country of Origin | N/A |
Manufactured Year | 2012 |
Amine Sweetening Package Details
7.18 MMscf/d Amine Sweetening Plant

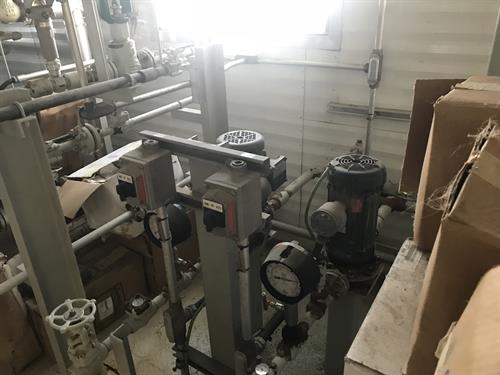

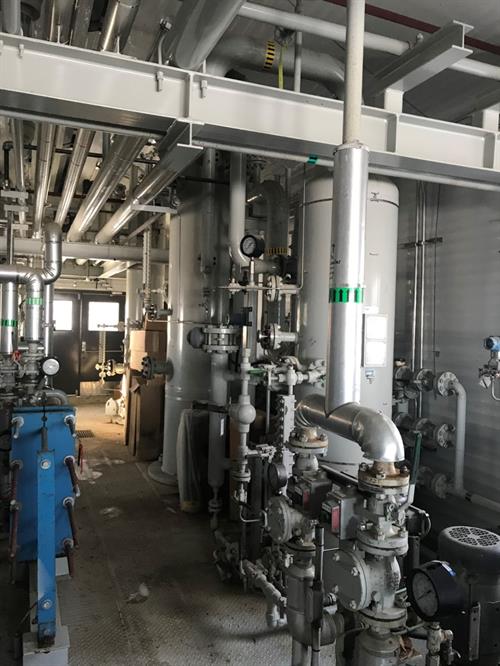

Package includes Amine Contractor, Sweet Gas Scrubber, Antifoam/Flash Tanks, Pumps, Filters, Amine Exchanger, Amine Regenerator, Condenser, Reboiler, Cooler, and Amine Makeup Building/Package.
Solvent: Dow HS-102 MDEA
Amine Contactor
- 864mm ID x 17678mm s/s
- Pressure: 4585 kPag @ -28.8C/100C, 3.18mm C.A.
- Full radiography, PWHT
- With 20 BDH float valve cartridge trays
Amine Sweetening | Inlet Filter Separator
- Top: 610mm OD x 3810mm s/s
- Pressure: 4585 kPag @ -28C, 3.18 C.A.
- Full radiography, PWHT
- (5) porous media APEX utilisep elements
Amine Sweetening | Sweet Gas Scrubber
- 610mm OD x 1829mm s/s
- 4585 kPag @ -28.8C/100C, 3.18mm C.A.
- Full radiography, PWHT
Amine Flash Tank
- 762mm OD x 2134mm s/s
- 1034 kPag @ -28.8C/100C, 3.18mm C.A.
- Full radiography, PWHT
Amine Regenerator
- 508mm OD x 7683mm S/F
- 345 kPag @ -28.8C/149C, 3.18mm C.A.
- Full radiography, PHWT
- With (1) 4572mm section of 38mm 304SS random packing
