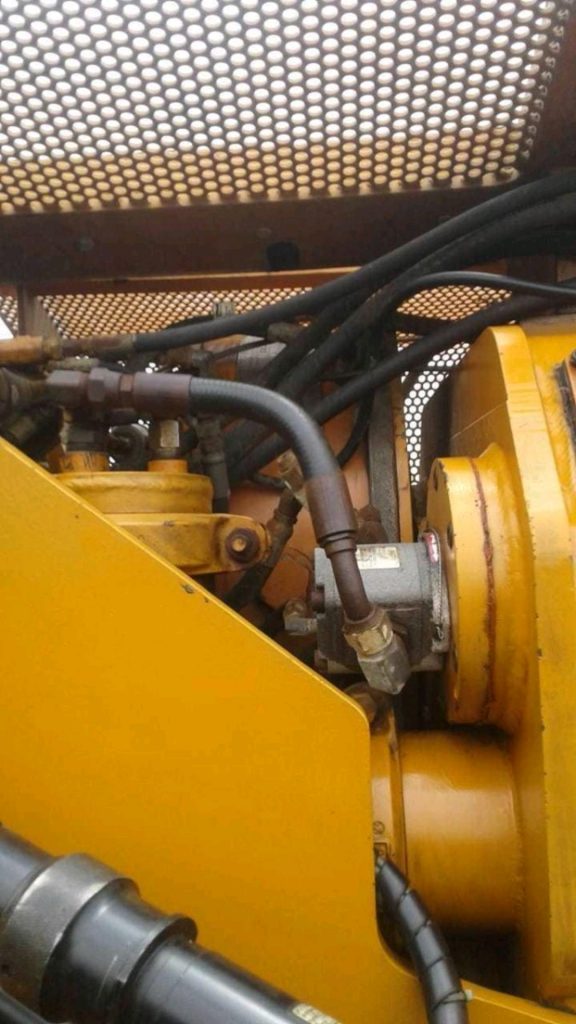

Equipment Name: Tesco ECI 650T Top Drive (Used)
Equipment Location: India
Tesco ECI 650T Top Drive Specification
Model: ECI 650T
Serial Number: 303
Load Capacity: 650 Tons
Motor Power: 900 HP (Dual 450 HP DC motors)
Max Drilling Torque: 36,700 ft/lbs
Make-up Torque: 45,000 ft/lbs
Breakout Torque: 56,000 ft/lbs
Max Speed: 193 rpm
Tesco ECI 650T Top Drive – Electric Top Drive
Compact top drive that fits into any triple masts. Rated at either 500 or 650 tons and powered by two 450 hp AC motors.
Tesco 650T top drive is modular, high performance electric top drives built for demanding drilling applications and are compact enough to fit into any triple mast. In the ECI(S) 900, traditional induction motors have been replaced with two liquid-cooled, magnet-synchronous motors which are capable of delivering up to 450HP each.
Tesco’s electric top drive systems utilize late-generation alternating current technology and use a permanent magnet motor and a computerized control system. This non-sparking, lightweight, Tesco ECI 650T electric top drive represents a significant technological advancement over more conventional electric top drives.
The complete system including the top drive, torque system and power unit can be installed within one day, typically with no rig modifications necessary. A double ball mud saver is also incorporated into the framework’s structure.
The Tesco ECI 650T top drive’s unique design integrates the gearbox and pipe handling spool resulting in a very compact unit. It also incorporates a programmable logic control which improves communications between the drive system and the driller’s panel, optimizes efficiency and provides important safety interlocks.
Tesco ECI 650T Top Drive Features
- Permanent Magnet Motor Technology
- Ideal For Heli-Transport Solutions
- Lightest Weight In 500/650T Class
- Compatible With Existing Swivel
- Dolly System Integrations
- New eDrive Maximizes Operating Performance
- 1350 HP Option
- Offshore Capable
Tesco ECI 650T Top Drive Advantages
- low maintenance
- improved performance efficiency
- higher torque capacity
- more environmentally friendly
- Quickly and easily, use the same top drive on multiple drilling rigs
Electric top drives use the power of the existing rig generator to perform the necessary tasks required for drilling applications.
