Grade | Storage Tank |
---|---|
Condition | Used |
Capacity (BBL) | >1000 |
Material | Carbon Steel |
Pressure Vessels | Yes |
Internally Coated | Yes |
Certifications | Yes |
Manufacturer | Northland Stainless, Inc. |
Country of Origin | UNITED STATES |
Manufactured Year | 2013 |

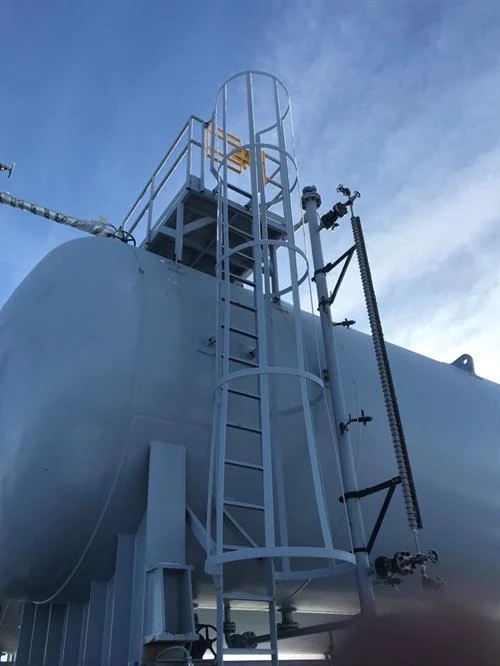

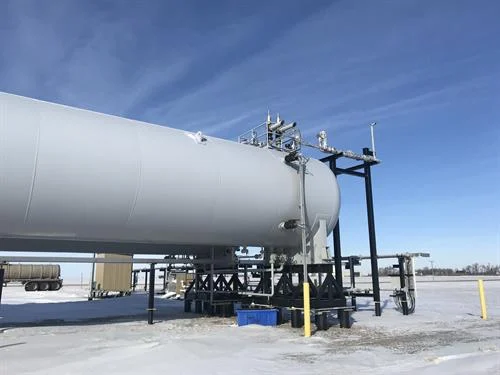

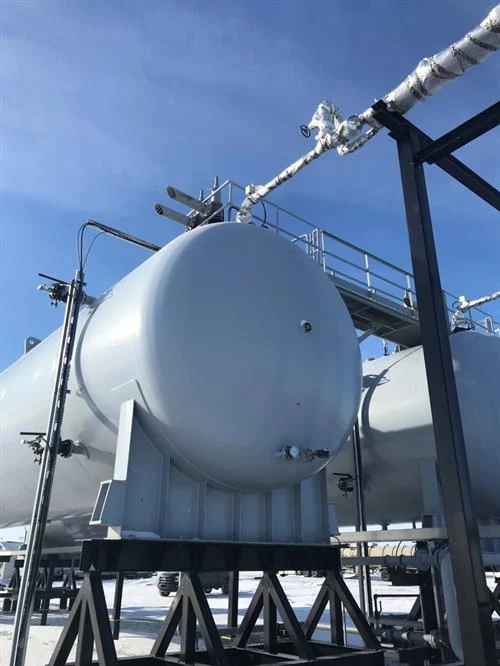

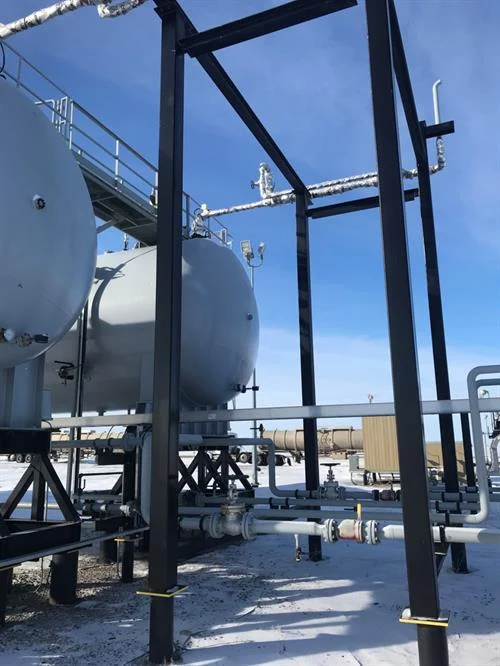

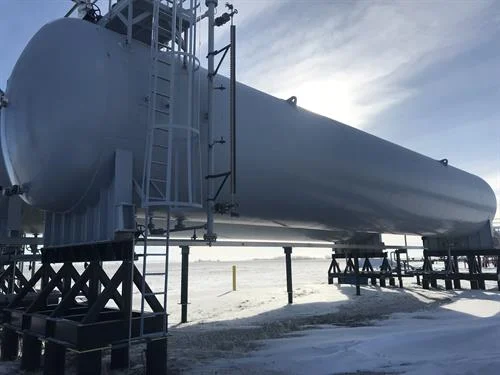

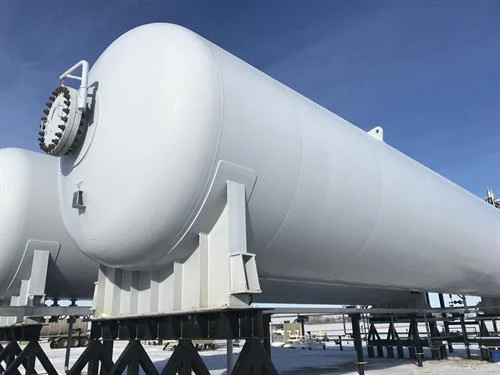

NGL Bullet Tanks Additional Details
Size (per each unit): 12’OD x 69.13′ T/T
12’OD x 69.67′ T/T
Orientation: Horizontal
Weight: 143,100 lbs.
Capacity (per each unit): 60,000 gallons, 1430 barrels, or 227 m3
C.A.: 0.063″
ASME Code Compliance
Design Pressure (PSIG): 250/FV
Design Temperature: 200°F
Regulator Set Pressure: 777 kPag

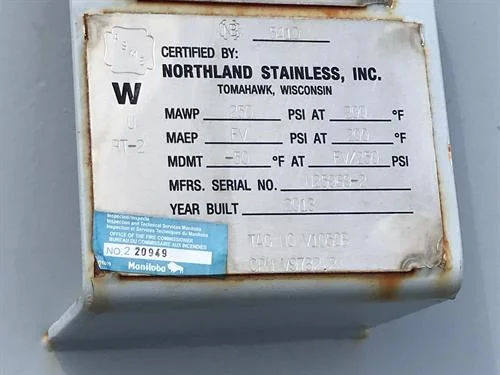

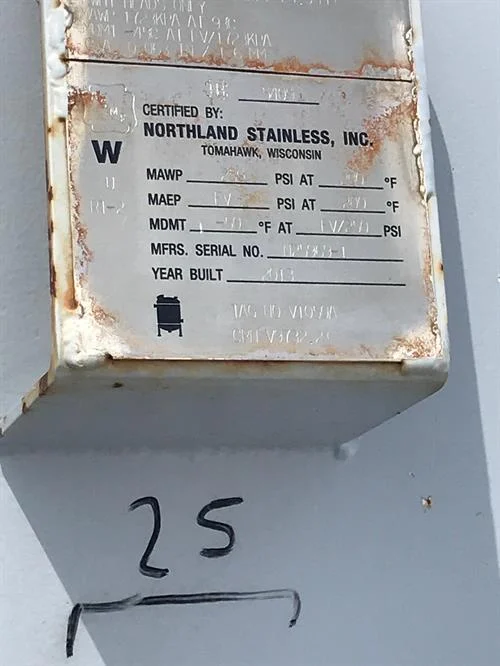

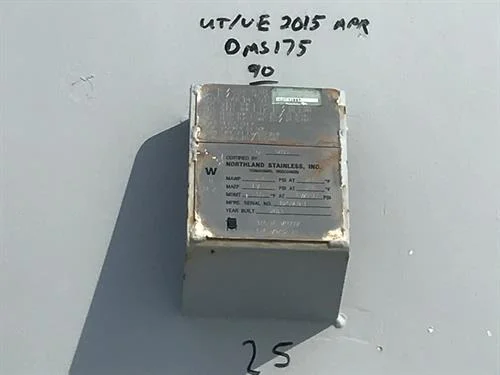

Manufacturer: Northland Stainless, Inc.
Urethane Coating
CRN: V9732.2
NB: 5409 and 5410
